Model No.

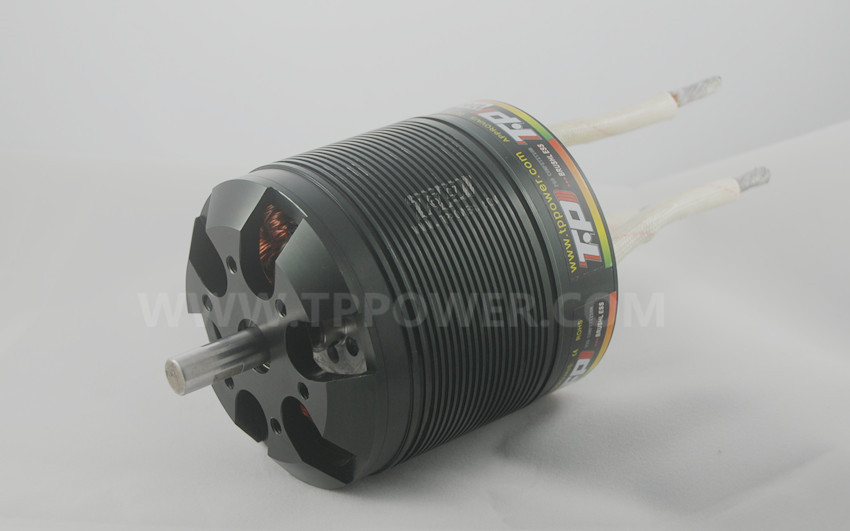

TP100

Slot & Pole

12 -Slot    10 -Pole

KV

        150KV  to 800KV

Quiescent Current(10V)

        1.2A   to 7.5A

Max Current

          123A to 635A

Vo

          33V  to 170V

DC Resistance

    0.00625  to  0.0007325

Max RPM

          25000RPM

Continuous Power

         10500W

Max Power

            23000W



Running Less than 10 senconds under Max RPM / Max Power







Customized According to Special Requirements is Available!
