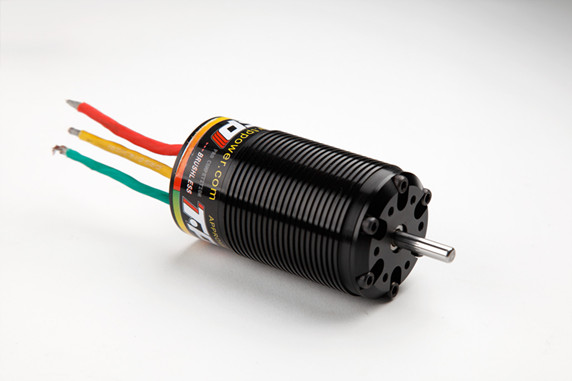

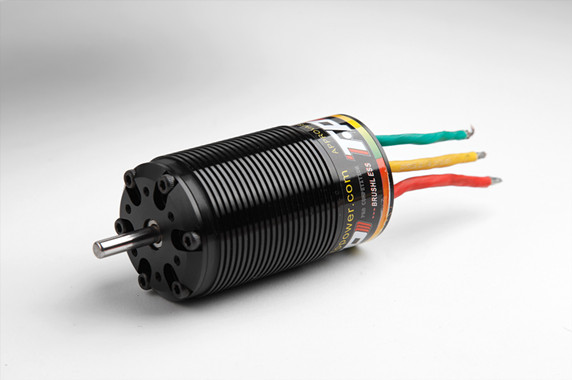

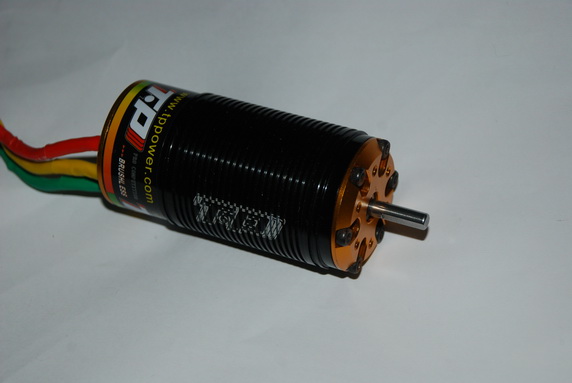

TP4050 Inrunner Brushless Motor For 1/8 RC Car

4-Pole

Sensoreless

T	KV	Max Amps (A)	Max Volt (V)	Max Power (W)	Max RPM	RM	No-load Current	Shaft Diameter (mm)	Diameter * Length (mm)	Weight (g)
4Y	1800	96	33	3200	60K	0.005	2.3	5	40x82	420
6Y	1200	64	50	3200	60K	0.0062	1.3	5		420
7Y	1040	56	57	3200	60K	0.0071	1	5		420
4D	3250	177	18	3200	60K	0.0018	4.2	5		420
5D	2600	139	23	3200	60K	0.0034	3.6	5		420
6D	2200	118	27	3200	60K	0.0041	2.4	5		420
7D	1850	100	32	3200	60K	0.0063	1.8	5		420
8D	1650	88	36	3200	60K	0.0072	1.7	5		420
11D	1150	61	52	3200	60K	0.015	1.4	5		420
