Motors>>Custom-Made Motors



Updated in 2016-12-27

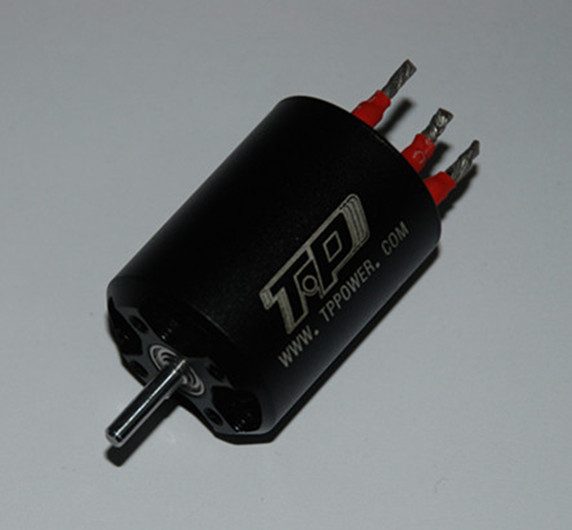

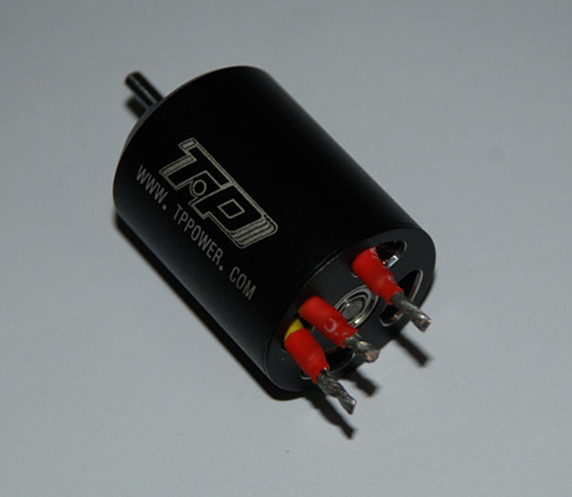

TP2820F5B Inrunner Brushless Motor For F5B Item ( F5B-1,F5B-2,P5B1,P5B2)

4-Pole

Custom-made



KV

Max Amps (A)

Max Volt  (V)

Max Power (W)

Max RPM

RM

No-load Current

Shaft Diameter (mm)

Diameter * Length (mm)

Weight (g)

5800

50

10

430

60K

0.0046

4.2

3.175

 27.5*37

83
