Basic » TPPOWER

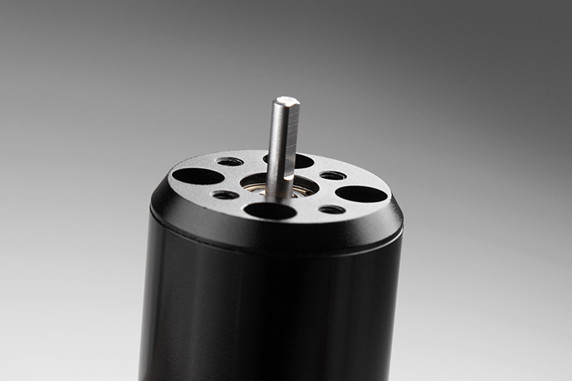

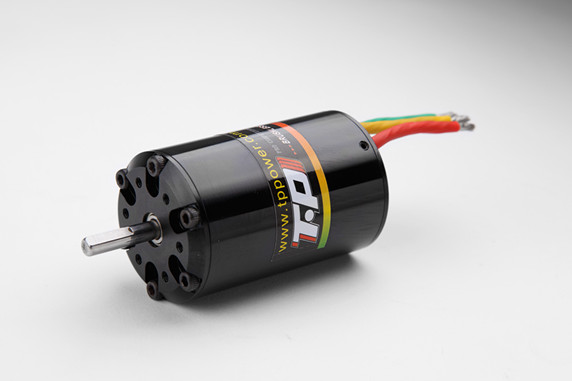

TP3640L Update for TP3640

4-Pole

T	KV	Max Amps (A)	Max Volt (V)	Max Power (W)	RM	Max RPM	No-load Current	Shaft Diameter (mm)	Diameter * Length (mm)	Weight (g)
4D	3550	185	14.8	2750	0.0019	50K	5.3	5	36*74	338
5D	2840	161	17	2750	0.0022	50K	4.7	5		338
6D	2360	130	21	2750	0.0035	50K	3	5		338
7D	2000	110	25	2750	0.0042	50K	2.7	5		338
8D	1770	98	28	2750	0.0051	50K	1.9	5		338
9D	1570	88	31	2750	0.0075	50K	1.8	5		338
10D	1420	78	35	2750	0.0092	50K	1.6	5		338
11D	1290	72	38	2750	0.0098	50K	1.5	5		338
12D	1180	65	42	2750	0.01	50K	1.4	5		338
