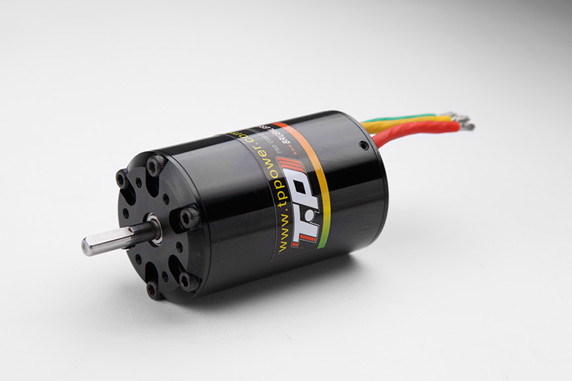

TP4030 Inrunner Brushless Motor

4-Pole

T	KV	Max Amps (A)	Max Volt (V)	Max Power (W)	Max RPM	RM	No-load Current	Shaft Diameter (mm)	Diameter * Length (mm)	Weight (g)
4D	5600	200	10	2000	60K			5	40x66	356
5D	4480	153	13	2000	60K			5		356
6D	3700	125	16	2000	60K			5		356
7D	3200	111	18	2000	60K	0.0038	3.4	5		356
8D	2750	95	21	2000	60K	0.0043	2.4	5		356
9D	2450	83	24	2000	60K	0.0063	2	5		356
10D	2200	74	27	2000	60K			5		356
11D	2010	68	29	2000	60K			5		356
12D	1800	60	33	2000	60K			5		356
